Dongfeng Dragon H5 Pallet Truck

The family design style of Type 3.0 is applied to Chenlong H5, which not only improves the texture of the whole vehicle, but also increases the configuration of the whole vehicle compared with the previous generation of models. The quasi-flat floor cab of Chenlong H5 not only makes its internal space more generous, but also makes it more favored by users.

Inquiry

Product Feature:

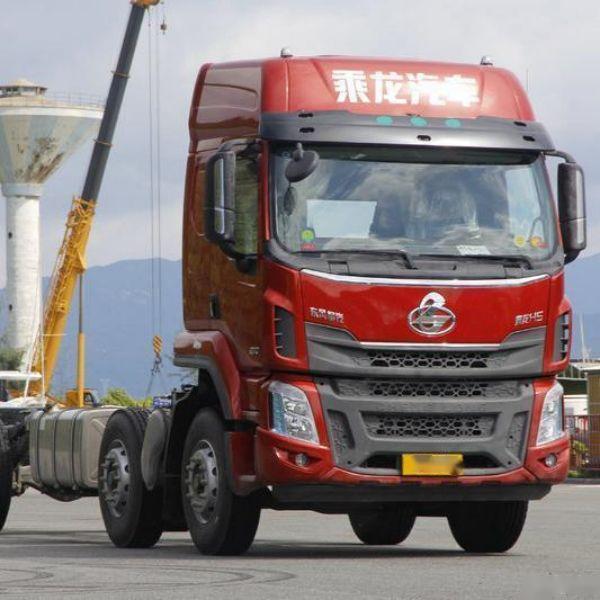

There are two air diversion slots in the position of the vehicle intake grille and headlight, which can optimize the air flow direction of the head, effectively reduce the air resistance, and then reduce part of the fuel consumption.In addition, the design of air diversion groove at the position of the intake grille can filter rain water and mud stains well, so as to avoid excessive mud water at the door handle. Headlamp design, the overall shape and style is well integrated with the vehicle design.

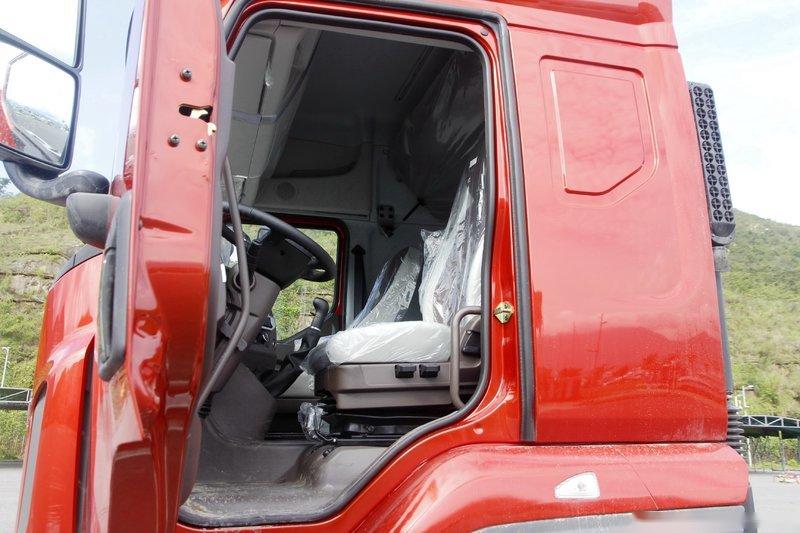

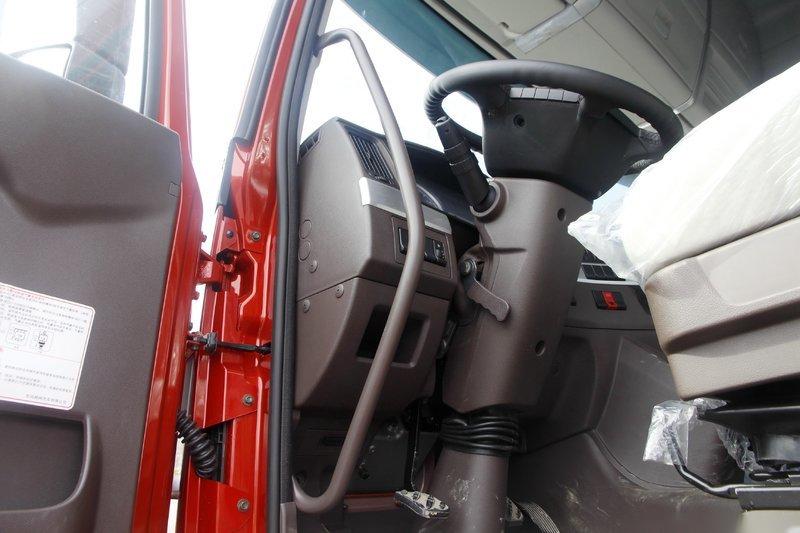

In terms of function, in addition to daytime running lights using LED light source, other lights including near and far lights, turn signals and fog lights all use halogen light source, its late maintenance cost is very low, accessories are also very easy to find. The interior of the cab also adopts the double bed design of the lower berth, the overall space is not crowded.

主要技术参数

The main technical parameters

外形尺寸:

Dimensions

9100,10100,8500×2550×3850,4000(mm) 货厢尺寸:

Cargo compartment size

6800,7800,6200,6600×2460×2500,2650(mm)
总质量:

Total mass

18000(Kg) 载质量利用系数:

Load quality utilization factor

1.28
整备质量:

Curb quality

7880(Kg) 额定载质量:

Rated contained mass

9990(Kg)
挂车质量:

Trailer quality

半挂鞍座:

Semi-trailer saddle


驾驶室:

Cab

  前排乘客:

Front passenger

2(人)
额定载客:

Rated passenger

(人) 防抱死系统:

Anti-lock brake system

Have

接近角/离去角:

Approach / departure angle

20/12,20/11(°) 前悬/后悬:

Front suspension/rear suspension

1445/2555,1445/2955,1445/2355(mm)
轴荷:

Axle load

6500/11500 轴距:

Wheelbase

5100,5700,6300,7100,4700(mm)
轴数:

Number of axes

2 最高车速:

Maximum speed

90,110(km/h)
油耗:

Fuel consumption

25.8 弹簧片数:

Number of springs

11/12+9,2/3+2,3/4+3,2/12+9,8/9+5,2/9+5,3/12+9,3/9+5,3/3+3,3/-
轮胎数:

Number of tires

6 轮胎规格:

Tire specifications

10.00R20 18PR,275/80R22.5 18PR,295/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR
前轮距:

Front track

1916,1956,2040,2080 后轮距:

Rear track

1800,1860
转向形式:

Steering Type

方向盘

Steering wheel

起动方式:

Starting method

25.8
传动型式:

Transmission type

  油耗(L/100Km):

Fuel consumption

45.1,45.4,45.7,44.6,44.2,45.1,44.5
