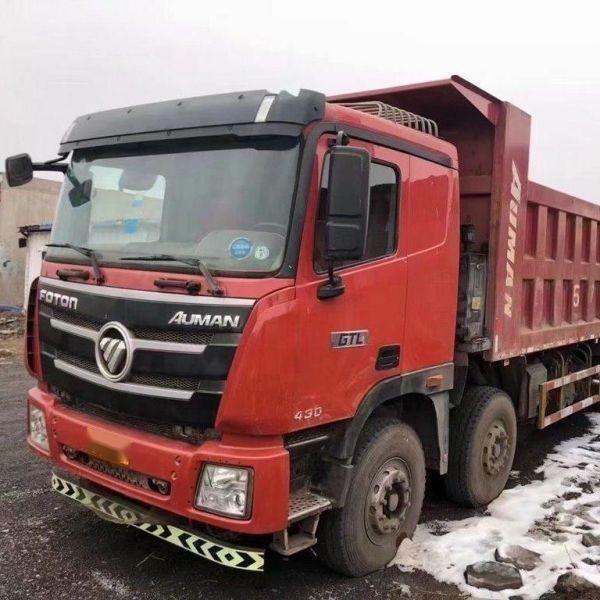

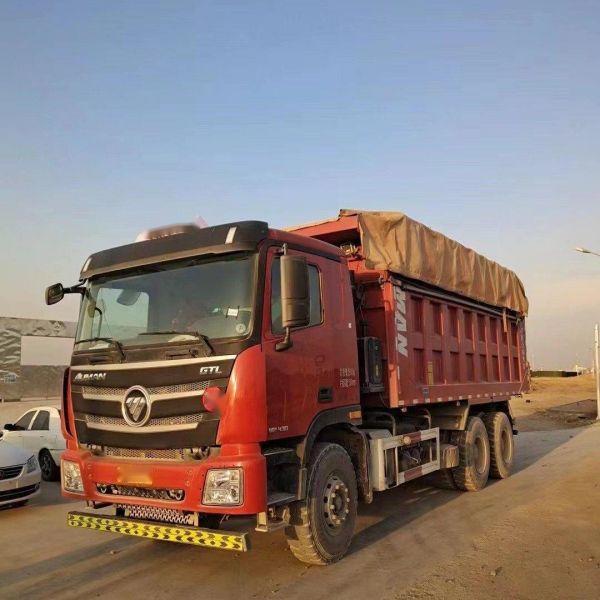

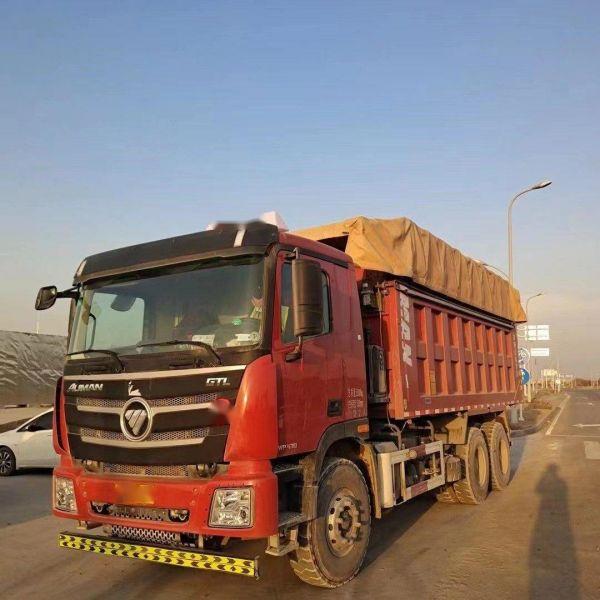

Foton Auman New ETX 9 Series 6*4 Dump Truck

Auman new ETX 9 series of Foton Cummins country 6 engine by adding DOC, DPF, electronic control system and other components in the tail gas post-treatment system, to improve the exhaust temperature, promote DPF regeneration, to solve the country 6 stringent emissions problems; On the security front, the man based on artificial intelligence, Internet of things, big data, cloud computing and other high and new technology, developed a large number of security protection technology, make the products have a lane departure, collision warning, tire explosion-proof, tire pressure detection, the electronically controlled air suspension, EBS electric braking and tank car blind spot monitoring device such as a series of main passive safety and improve transportation safety.

Inquiry

Product Feature:

Auman EST-A, the core power chain is equipped with Foton Cummins X13 power, and the joint venture ZF TraXon automatic transmission. The TraXon is zF’s fourth generation heavy duty AMT transmission and the latest generation of automatic heavy duty transmission. The advantages of TraXon are straightforward. The transmission efficiency is up to 99.8%, reducing power loss and overcoming cost problems after joint production. Foton Cummins X13 engine is also very hardcore in data performance, 13 liter power 560HP power segment torque output up to 2600 N · m, really better than the general engine performance, X13 is equipped with XPI ultra-high pressure injection system, injection pressure up to 2300bar, more than the general level of 2000bar, Can bring better fuel atomization effect, combustion more fully. The combination of the TraXon and THE X13 offers even greater advantages, starting with a modular and lightweight design that makes it more reliable and efficient.

Both TraXon and X13 are equipped with advanced intelligent technology. The X13 is equipped with a more precise intelligent combustion control module that enables both sides to keep the engine running within fuel economy by sharing vehicle data, and the TraXon can use GPS to predict driving and reduce the frequency of gear changes to maximize fuel economy. In terms of safety, X13 power carries the second generation of iBrake engine brake, with ZF hydraulic retarder, greatly improves the braking safety of the vehicle, in the face of long downhill can say goodbye to the diller, to achieve smooth and safe driving. This new version of Auman EST-A in comfort and humanized design has also been upgraded in all aspects, first of all, the cab uses A new embrace interior design, the design of the central control is more compact, convenient for the driver to operate. One-button start caters to the trend of passenger car, the main seat adopts 8-way adjustable air bag seat, with pneumatic adjustable multi-functional steering wheel, bringing better comfortable experience.

主要技术参数

The main technical parameters

外形尺寸:

Dimensions

8272,8472,8672×2495×3400(mm) 货厢尺寸:

Cargo compartment size

5400,5600,5800×2300×1100(mm)
总质量:

Total mass

25000(Kg) 载质量利用系数:

Load quality utilization factor

1.05
整备质量:

Curb quality

12165(Kg) 额定载质量:

Rated contained mass

12705,12640(Kg)
挂车质量:

Trailer quality

半挂鞍座:

Semi-trailer saddle


驾驶室:

Cab

  前排乘客:

Front passenger

3,2(人)
额定载客:

Rated passenger

(人) 防抱死系统:

Anti-lock brake system

Have

接近角/离去角:

Approach / departure angle

18/29(°) 前悬/后悬:

Front suspension/rear suspension

1532/1565,1532/1765,1532/1965(mm)
轴荷:

Axle load

7000/18000(二轴组)

7000/18000 Two-axis group

轴距:

Wheelbase

3825+1350(mm)
轴数:

Number of axes

3 最高车速:

Maximum speed

90(km/h)
油耗:

Fuel consumption

43.2 弹簧片数:

Number of springs

9/12,10/12,11/14
轮胎数:

Number of tires

10 轮胎规格:

Tire specifications

12.00-20 18PR, 12.00R20 16PR, 11.00-20, 11.00R20
前轮距:

Front track

2005 后轮距:

Rear track

1865/1865,1880/1880
转向形式:

Steering Type

方向盘

Steering wheel

起动方式:

Starting method


传动型式:

Transmission type

  油耗(L/100Km):

Fuel consumption

43.2
