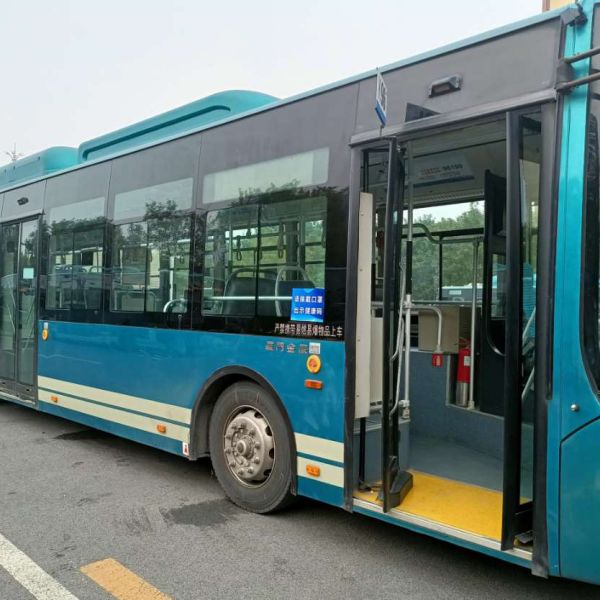

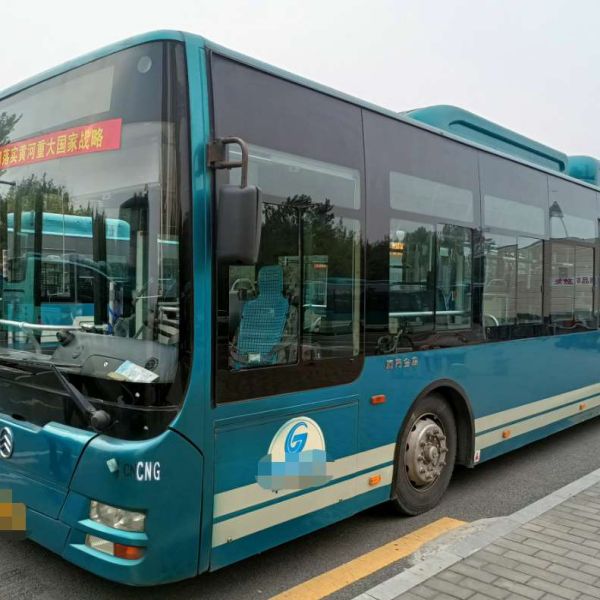

Golden Dragon City Bus

Golden dragon city bus modelling novel, luxurious style and rich sense of times.

Inquiry

Product Features:

Engine CNG engine, equipped with Honeywell turbocharger and speed limiting device, energy saving, environmental protection, strong power. The vehicle adopts a step, optional air suspension, vehicle noise standards and braking distance is better than the national standard, comfort is better. CAN bus technology, with the function of driving data recorder, hard disk monitoring, GPS car TV, advanced configuration.

golden dragon city bus 4

golden dragon city bus 5

Automotive steel in the vehicle material selection, the use of Shanghai Baosteel production of high-quality steel, high strength and stiffness of the vehicle, electrical connectors are all AMP connectors, valve selection of imported German WABCO brand, electrical circuit with high temperature resistant flame retardant wire (175℃), all the safety configuration.

golden dragon city bus 6

golden dragon city bus 7

主要技术参数

The main technical parameters

外形尺寸:

Dimensions

12000*2550*3300(mm) 货厢尺寸:

Cargo compartment size

××(mm)
总质量:

Total mass

18000(Kg) 载质量利用系数:

Load quality utilization factor

整备质量:

Curb quality

12320,11820,11045,12700(Kg) 额定载质量:

Rated contained mass

(Kg)
挂车质量:

Trailer quality

半挂鞍座:

Semi-trailer saddle

驾驶室:

Cab

  前排乘客:

Front passenger

额定载客:

Rated passenger

87/33(人) 防抱死系统:

Anti-lock brake system

Have

接近角/离去角:

Approach / departure angle

7/7.5(°) 前悬/后悬:

Front suspension/rear suspension

2710/3170,2650/3350,2710/3190,2650/3370(mm)
轴荷:

Axle load

6500/11500 轴距:

Wheelbase

6100,5980(mm)
轴数:

Number of axes

2 最高车速:

Maximum speed

69(km/h)
油耗:

Fuel consumption

弹簧片数:

Number of springs

3/4,4/5,8/10,-/-
轮胎数:

Number of tires

6,6,6,6 轮胎规格:

Tire specifications

275/70R22.5,12R22.5,295/80R22.5,11.00R20
前轮距:

Front track

2096,2054 后轮距:

Rear track

1870,1900
转向形式:

Steering Type

方向盘

Steering wheel

起动方式:

Starting method


传动型式:

Transmission type

  油耗(L/100Km):

Fuel consumption
