Jac Junling V6 Van Transport

Junling V6 is equipped with a Q25 engine, which meets the national VI B emission standards. The maximum output power is 152 HP, the torque is 420 NM, and the torque at low speed is 320 NM. The engine uses BOSCH high pressure common rail technology to reduce fuel consumption by 5% per 100 km, and adopts a lightweight design to meet future regulatory requirements.

Inquiry

Product Feature:

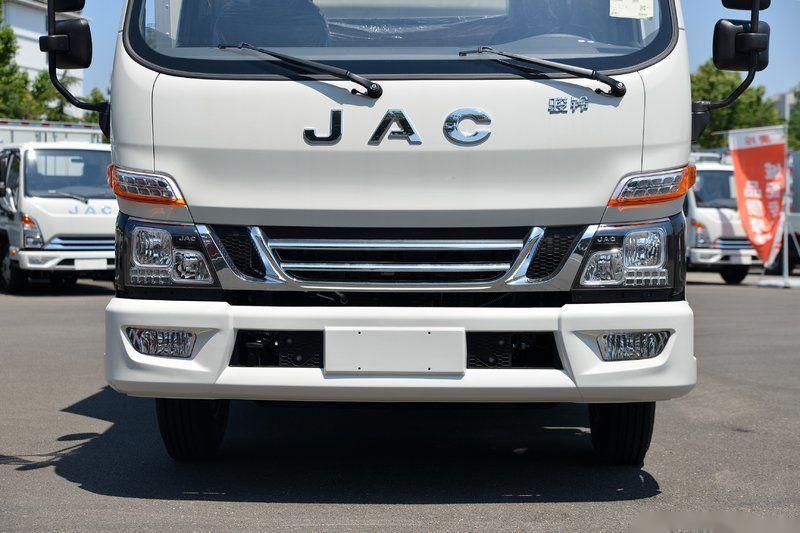

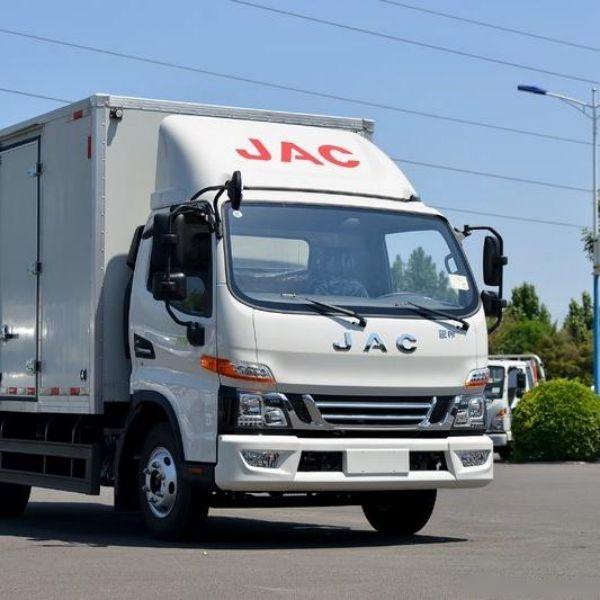

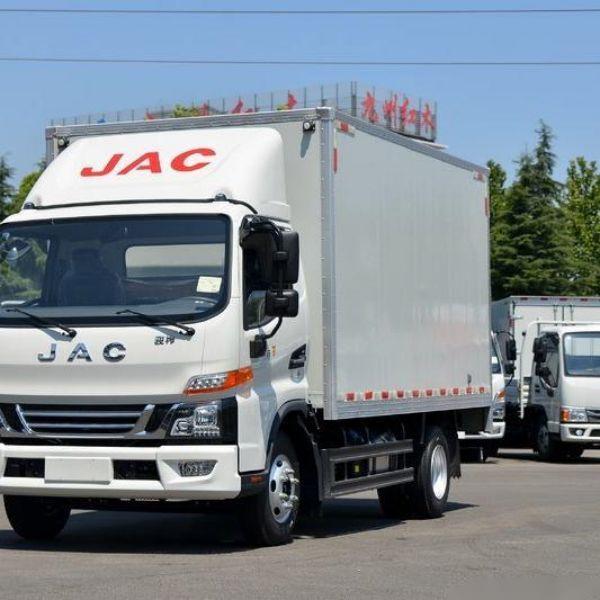

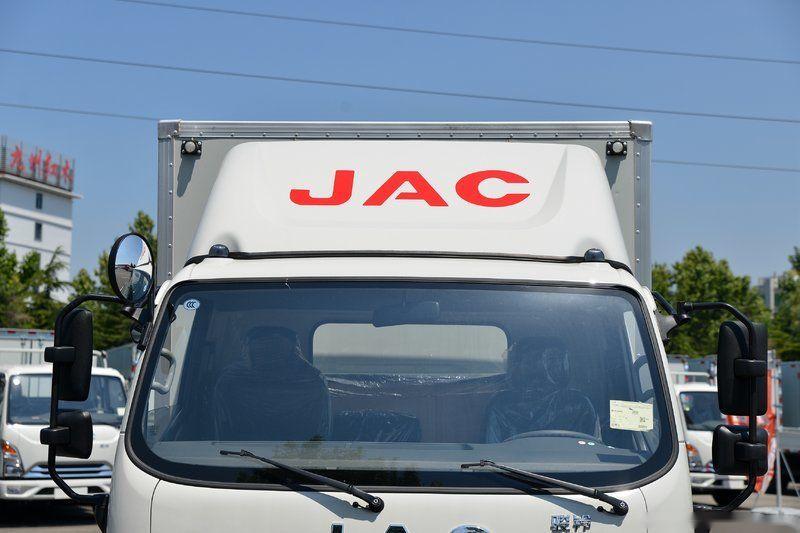

Jun ling V6 in the appearance of the design of the use of more family design language, double U shape of chrome mesh throughout the whole front face, stretching the overall visual width, with concave front face to make the smooth body more three-dimensional, create a more colorful visual effect.

Split type lighting is more unique, the upper “eyebrow” shaped steering indicator light, so that the front face full of vitality. The lower headlight integrates the daytime running light function, and the blackened lamp body makes it look more advanced.

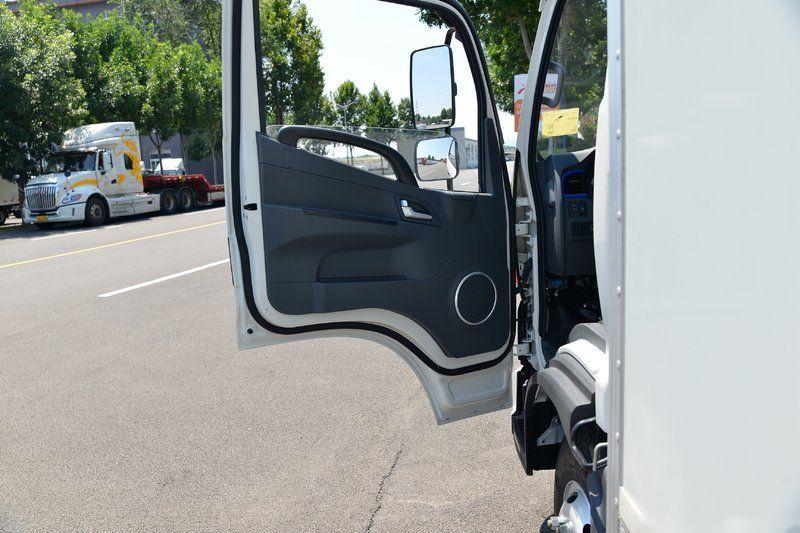

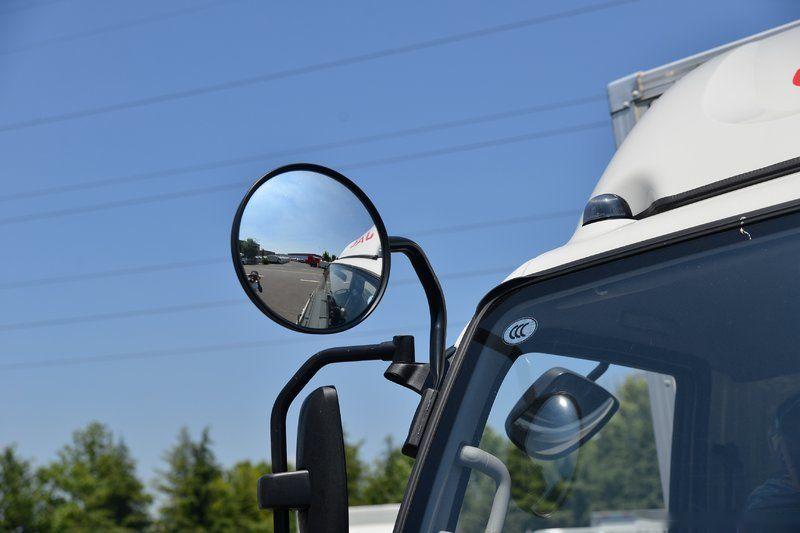

The rearview mirror adopts split design, and is equipped with two mirrors to increase the driver’s field of vision, and supports electric heating to improve driving safety in rainy days. Inside the cab, the irregular shape of the center console is adopted.

With the long chrome horizontal cable, the overall look is more three-dimensional. With the wide body cab of 2071mm, it can bring better spatial feeling.

The central console side adopts arc design so that the storage space is not affected, at the same time, the platform formed by the staggered layer can also store things, so the design is more practical.

At the same time, the vehicle is equipped with electric Windows, multi-functional steering wheel, MP3, air conditioning, excellent practicality. The rear axle is a 5T class rear axle with a speed ratio of 4.33. Equipped with six CR907 pattern chaoyang tires, specifications are 7.50R16LT, featuring durability and fuel economy.

主要技术参数

The main technical parameters

外形尺寸:

Dimensions

5995×2140,2190,2295,2365,2415,2550,2245,2165,2215×2800,

3070,3200,3400,3500,3270,3370,3000,3100,3150(mm)

货厢尺寸:

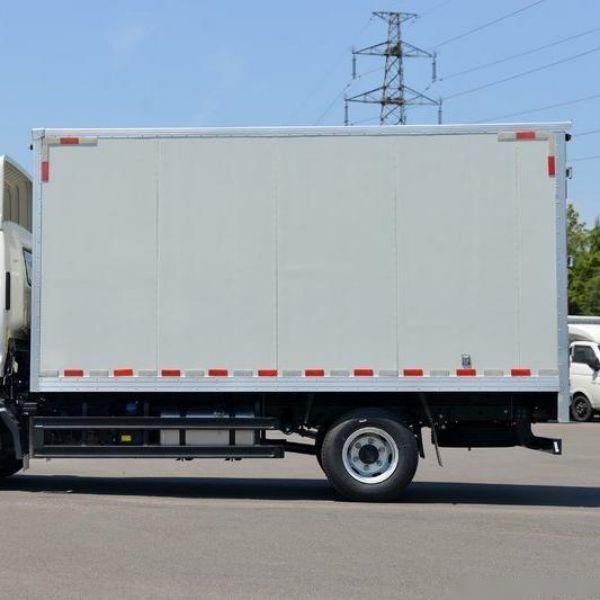

Cargo compartment size

4150,3820×2075,2180,2300,2450,2100×1700,

2000,2200,2300,2100(mm)

总质量:

Total mass

4495(Kg) 载质量利用系数:

Load quality utilization factor

0.40
整备质量:

Curb quality

3200(Kg) 额定载质量:

Rated contained mass

1100(Kg)
挂车质量:

Trailer quality

半挂鞍座:

Semi-trailer saddle


驾驶室:

Cab

  前排乘客:

Front passenger

3(人)
额定载客:

Rated passenger

(人) 防抱死系统:

Anti-lock brake system

Have

接近角/离去角:

Approach / departure angle

24/14(°) 前悬/后悬:

Front suspension/rear suspension

1075/1555,1110/1520(mm)
轴荷:

Axle load

1620/2875 轴距:

Wheelbase

3365(mm)
轴数:

Number of axes

2 最高车速:

Maximum speed

100(km/h)
油耗:

Fuel consumption

11.3,11.4,11.3,11.3,11.4,11.4,11.5,11.3,11.4,11.4,11.4,11.4,11.4 弹簧片数:

Number of springs

9/9+7,4/9+7,5/5+6,5/4+3,4/7+7,9/7+7,4/4+2,

4/5+6,4/7+6,8/7+6,2/1+1,4/4+3

轮胎数:

Number of tires

6 轮胎规格:

Tire specifications

7.50R16LT 6PR,8.25R16LT 6PR,7.00R16LT

8PR,215/75R16LT 8PR

前轮距:

Front track

1695,1725,1705,1690,1785 后轮距:

Rear track

1560,1620,1785,1605,1705
转向形式:

Steering Type

方向盘

Steering wheel

起动方式:

Starting method


传动型式:

Transmission type

  油耗(L/100Km):

Fuel consumption

11.3,11.4,11.3,11.3,11.4,11.4,11.5,11.3,11.4,11.4,11.4,11.4,11.4
