Jiefang J6P Flat Diesel Semitrailer Tractor

J6P is popular all over the country, and the cumulative sales volume has exceeded 1 million since its launch. It can be said that it is the god of tractors in the hearts of users.

Inquiry

Product Feature:

The appearance of J6P is simple and atmospheric, and the design style is more modern and younger. Both inside and outside repair, with comprehensive technology leading, quality upgrade to shape the soul of the product.

J6P’s three core assemblies — engine, gearbox and axle have achieved 100,000km of oil change mileage, far exceeding domestic competitors and taking the absolute leading position in the market. J6P also achieved 500,000km of free oil change maintenance at the wheel end, which greatly saved users’ maintenance time and improved attendance.

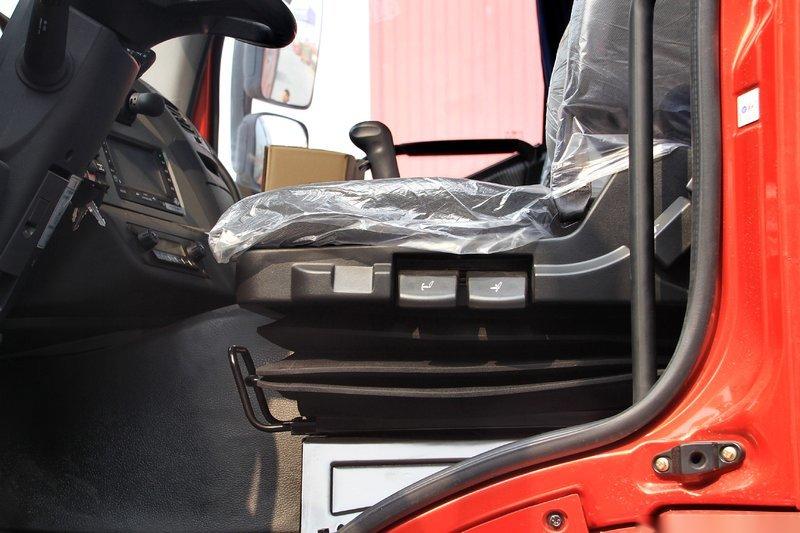

J6P has implemented a number of improvements and upgrades. For example, a four-point air mount arrangement is used to carry and filter vibration. In terms of seats, the air suspension travel is increased to reduce vibration and improve comfort. At the same time, the design of backrest adopts ergonomics principle, increases the contact surface to strengthen the back wrapping, increases the comfort of the back, and improves the density and thickness of sponge to reduce driving fatigue.

主要技术参数

The main technical parameters

外形尺寸:

Dimensions

7160,6910,7050×2495×3560,3060,3160,3980,3800(mm) 货厢尺寸:

Cargo compartment size

××(mm)
总质量:

Total mass

25000(Kg) 载质量利用系数:

Load quality utilization factor

整备质量:

Curb quality

8805(Kg) 额定载质量:

Rated contained mass

(Kg)
挂车质量:

Trailer quality

40000(kg) 半挂鞍座:

Semi-trailer saddle

16000,16065
驾驶室:

Cab

前排乘客:

Front passenger

3,2(人)
额定载客:

Rated passenger

(人) 防抱死系统:

Anti-lock brake system

Have

接近角/离去角:

Approach / departure angle

18/40(°) 前悬/后悬:

Front suspension/rear suspension

1470/890,1470/780,1500/750(mm)
轴荷:

Axle load

7000/18000(二轴组)

7000/18000 Two-axis group

轴距:

Wheelbase

3450+1350,3200+1350(mm)
轴数:

Number of axes

3 最高车速:

Maximum speed

125,79(km/h)
油耗:

Fuel consumption

46.57 弹簧片数:

Number of springs

10/11,3/4,3/-,11/12
轮胎数:

Number of tires

10 轮胎规格:

Tire specifications

11.00R20 16PR,12.00R20 14PR,12.00-20 16PR,11.00R20 16PR,12.00R20 14PR,12.00-20 16PR,315/80R22.5 16PR,12R22.5 16PR
前轮距:

Front track

2050,2020 后轮距:

Rear track

1830/1830
转向形式:

Steering Type

方向盘

Steering wheel

起动方式:

Starting method

传动型式:

Transmission type

油耗(L/100Km):

Fuel consumption

46.57
