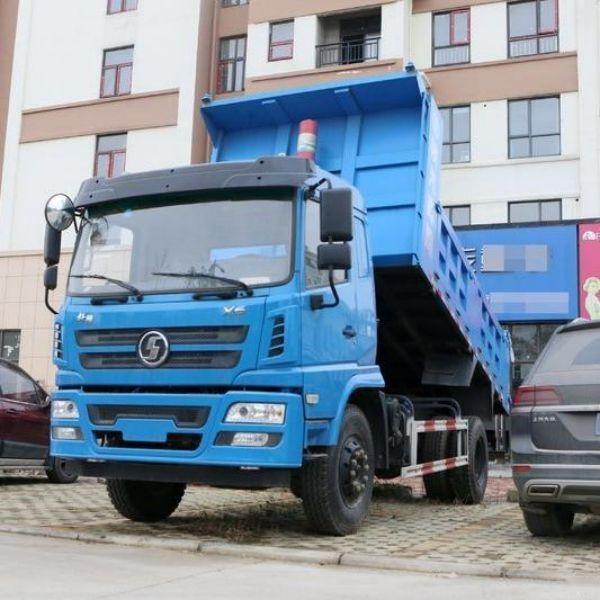

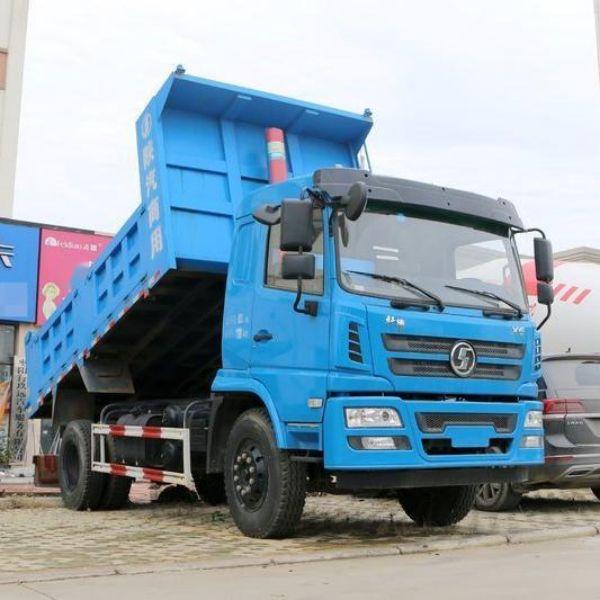

Shanqi Xuande X6 Composite Version Dump Truck

Shanqii Xuande X6 dump truck has a very high reputation in the engineering vehicle industry, leather durability, high reliability, welcomed by users. And Yuchai YC6L engine also has a good performance, there is a certain amount of possession in the field of dump truck, late use and maintenance costs are relatively advantageous, but also can match a variety of power, cargo compartment, to meet different transport needs.

Inquiry

Product Feature:

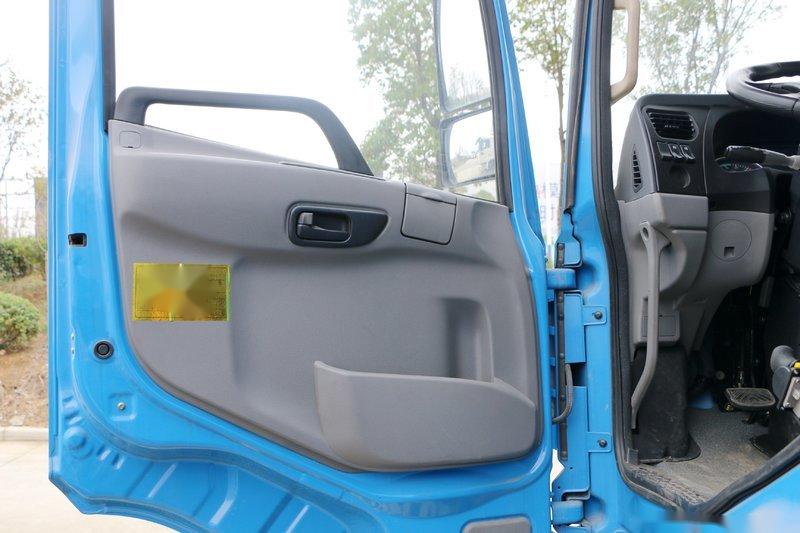

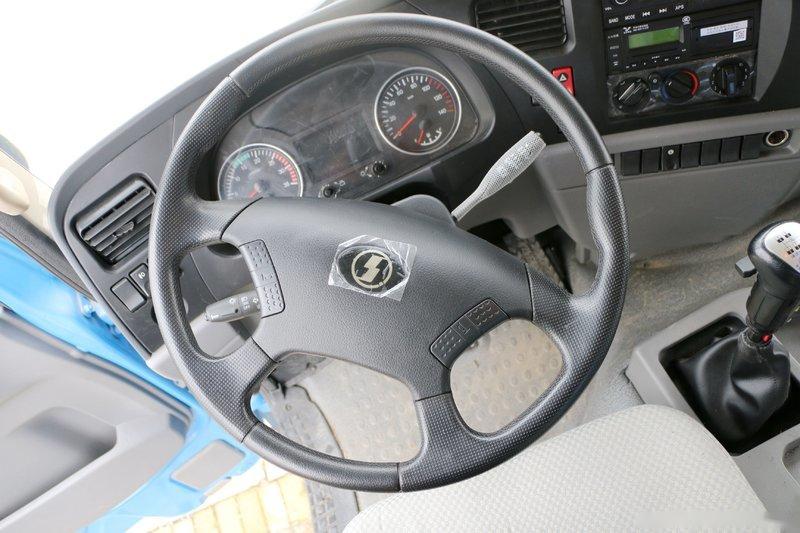

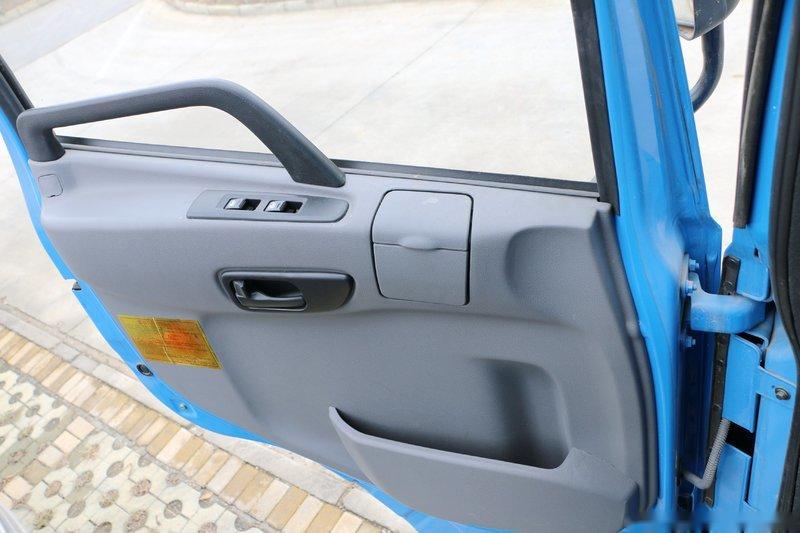

Xuande X6 luxury cab, four-point mechanical suspension shock absorption, original air bag seat, original air conditioning, electric doors and Windows, central control door lock, water tank protection, Zhiya tianxingjian driving system.

Engine: Weichai 6-cylinder 220 horsepower (National fifth); Gearbox: Faster 10JS90A; Axle: Front axle 153+153/ rear axle :13T/16T Handsteyr wheel minus rear axle; Frame: 280*(8+4);

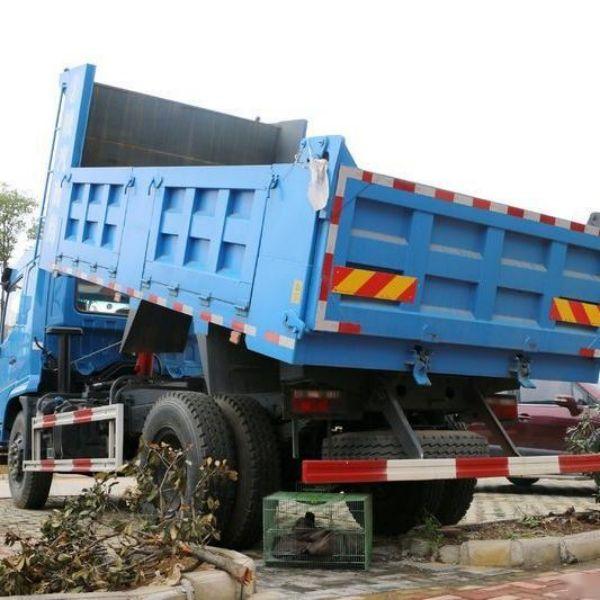

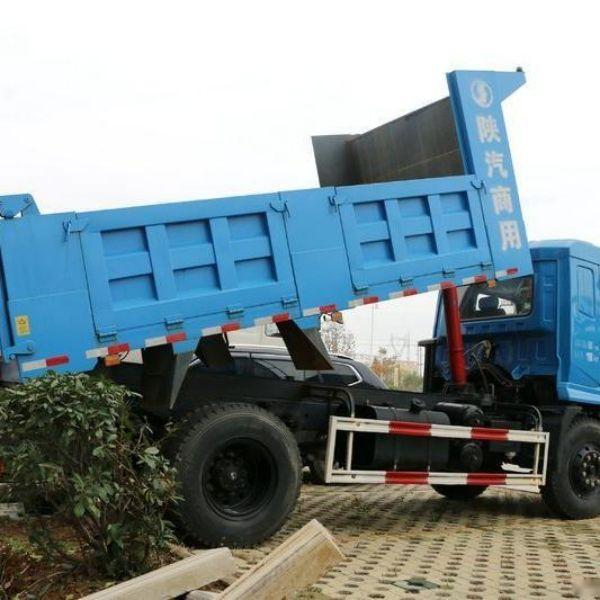

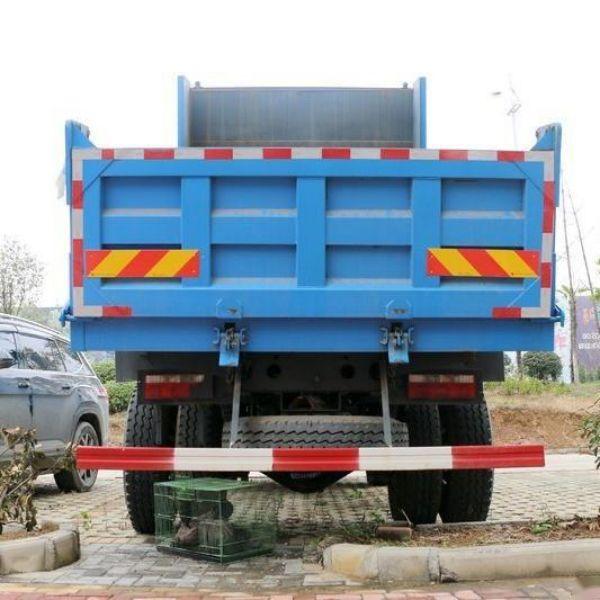

Wheelbase: 1800+3150; Container configuration: domestic front top 160 oil cylinder, Shenhe jacket, side 3 bottom 4 high strength plate T700 material, four longitudinal beams, four reverse support, rear door in the door side open, automatic expansion cover.

主要技术参数

The main technical parameters

外形尺寸:

Dimensions

7050,7250,7450,7650,6650×2500,2550,2400×3080,3100(mm) 货厢尺寸:

Cargo compartment size

4500,4700,4900,4200×2300,2350,2200×800(mm)
总质量:

Total mass

16000(Kg) 载质量利用系数:

Load quality utilization factor

1.04
整备质量:

Curb quality

7815(Kg) 额定载质量:

Rated contained mass

7990(Kg)
挂车质量:

Trailer quality

半挂鞍座:

Semi-trailer saddle


驾驶室:

Cab

  前排乘客:

Front passenger

3(人)
额定载客:

Rated passenger

(人) 防抱死系统:

Anti-lock brake system

Have

接近角/离去角:

Approach / departure angle

23/18(°) 前悬/后悬:

Front suspension/rear suspension

1450/1650,1450/1850,1450/1950,1450/2050,1450/1600(mm)
轴荷:

Axle load

6000/10000 轴距:

Wheelbase

3950,4250,3600(mm)
轴数:

Number of axes

2 最高车速:

Maximum speed

85km/h)
油耗:

Fuel consumption

27.2 弹簧片数:

Number of springs

9/11+8,9/10+8,8/10+8
轮胎数:

Number of tires

6 轮胎规格:

Tire specifications

10.00-20,10.00R20,10.00-20 18PR,10.00R20 18PR
前轮距:

Front track

1880,1940,1957 后轮距:

Rear track

1750,1860
转向形式:

Steering Type

方向盘

Steering wheel

起动方式:

Starting method


传动型式:

Transmission type

  油耗(L/100Km):

Fuel consumption

27.2
