Yutong City Bus

Through structural optimization, application of high-strength lightweight materials and corresponding advanced technology, Yutong new energy bus improves the lightweight level of body, motor and battery, realizing weight reduction of 10%-20%, energy consumption reduction of more than 10% for the same carrying capacity, ​longer mileage, and meets the needs of safe, economical and sustainable bus operation.

Inquiry

Product Features:

The overall design of the driver’s rear enclosure avoids the interference of the driver during driving and ensures driving safety.Yutong new energy bus pays more attention to the driving experience, intimate details to meet more diversified driving needs. 360° panoramic view early warning auxiliary system can see the situation around the car body in all directions without dead Angle; 360° real-time monitoring of obstacles around the vehicle, judging the danger level of the vehicle in the traffic environment, reduce the probability of traffic accidents, and take into account the safety of passengers standing in the car, actively identify potential collision dangers, improve driving safety.

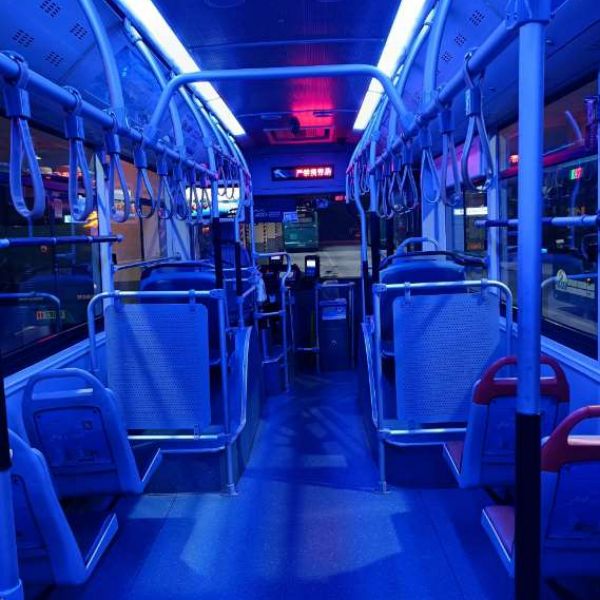

yutong city bus 4

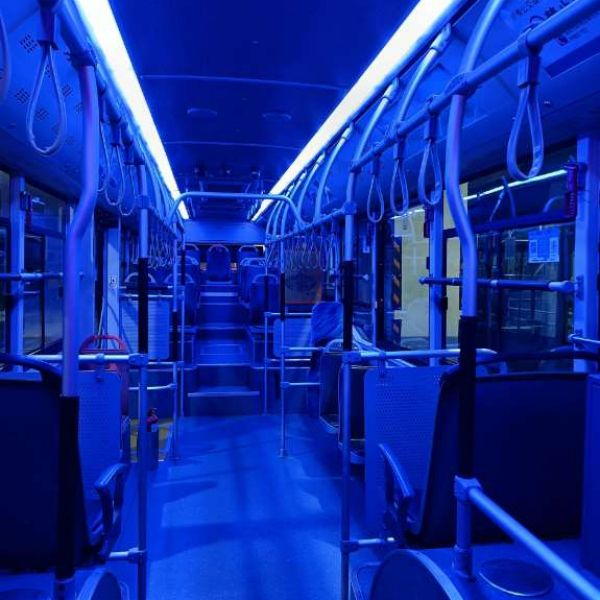

yutong city bus 5

主要技术参数

The main technical parameters

外形尺寸:

Dimensions

12000*2550*3360(mm) 货厢尺寸:

Cargo compartment size

××(mm)
总质量:

Total mass

18000(Kg) 载质量利用系数:

Load quality utilization factor


整备质量:

Curb quality

11200,11700,12200,12590,12850(Kg) 额定载质量:

Rated contained mass

(Kg)
挂车质量:

Trailer quality

半挂鞍座:

Semi-trailer saddle


驾驶室:

Cab

  前排乘客:

Front passenger


额定载客:

Rated passenger

98/26(人) 防抱死系统:

Anti-lock brake system

Have

接近角/离去角:

Approach / departure angle

7/7(°) 前悬/后悬:

Front suspension/rear suspension

2700/3200,2700/3425(mm)
轴荷:

Axle load

6500/11500 轴距:

Wheelbase

6100,5875(mm)
轴数:

Number of axes

2 最高车速:

Maximum speed

69(km/h)
油耗:

Fuel consumption

弹簧片数:

Number of springs

3/4,-/-,4/5,8/10
轮胎数:

Number of tires

6 轮胎规格:

Tire specifications

275/70R22.5,295/80R22.5
前轮距:

Front track

2040,2060,2085,2115 后轮距:

Rear track

1860,1880,1900
转向形式:

Steering Type

方向盘

Steering wheel

起动方式:

Starting method

传动型式:

Transmission type

  油耗(L/100Km):

Fuel consumption
